Product Name
|

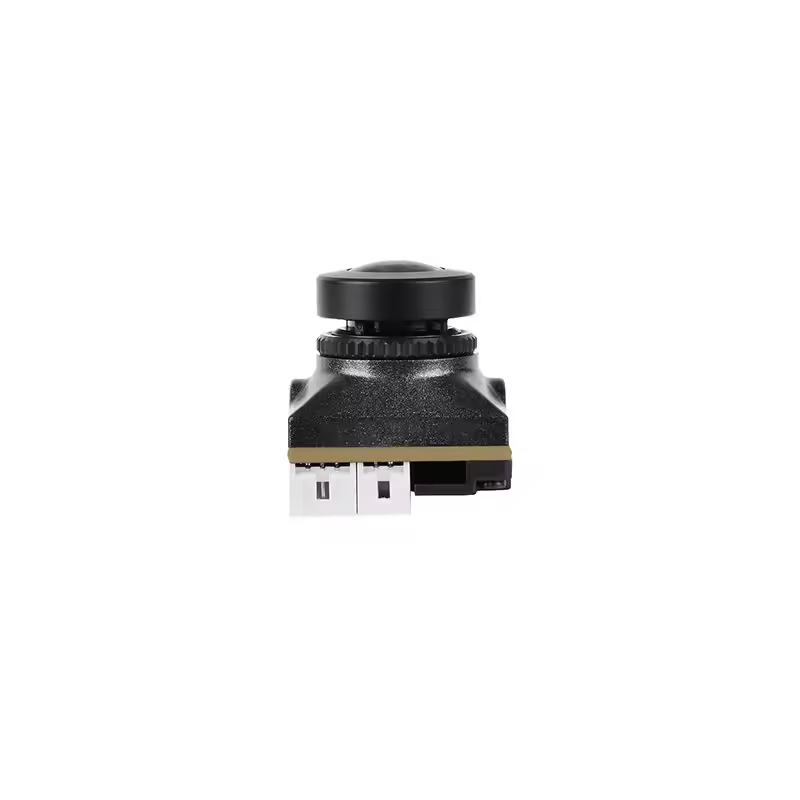

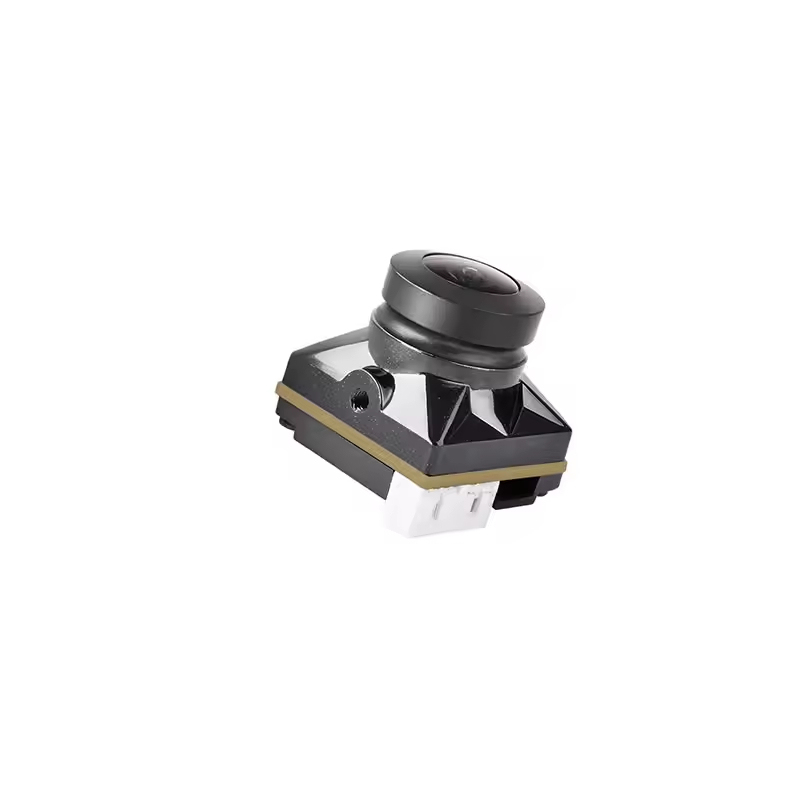

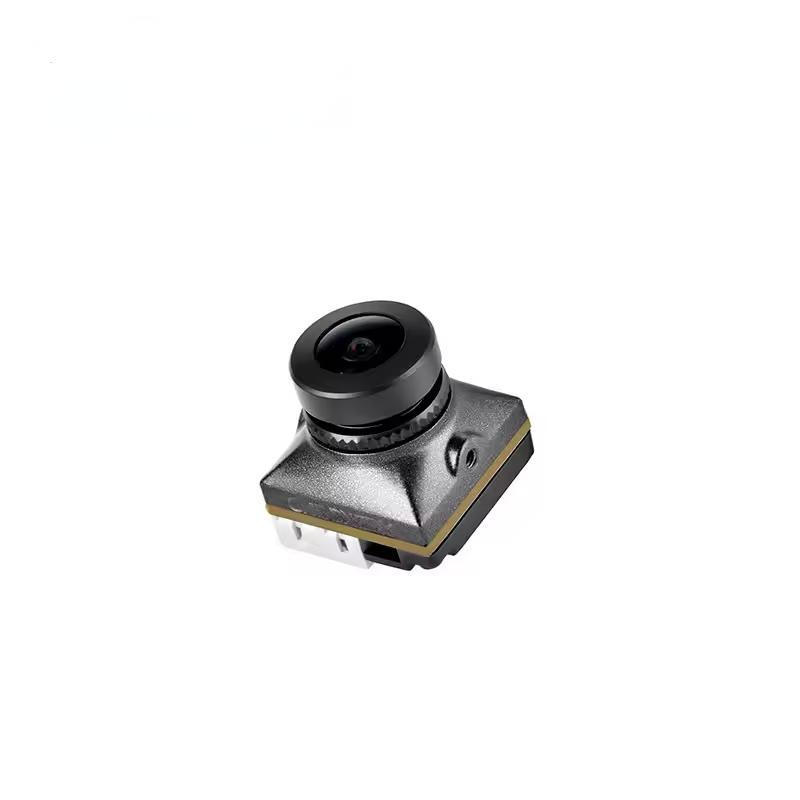

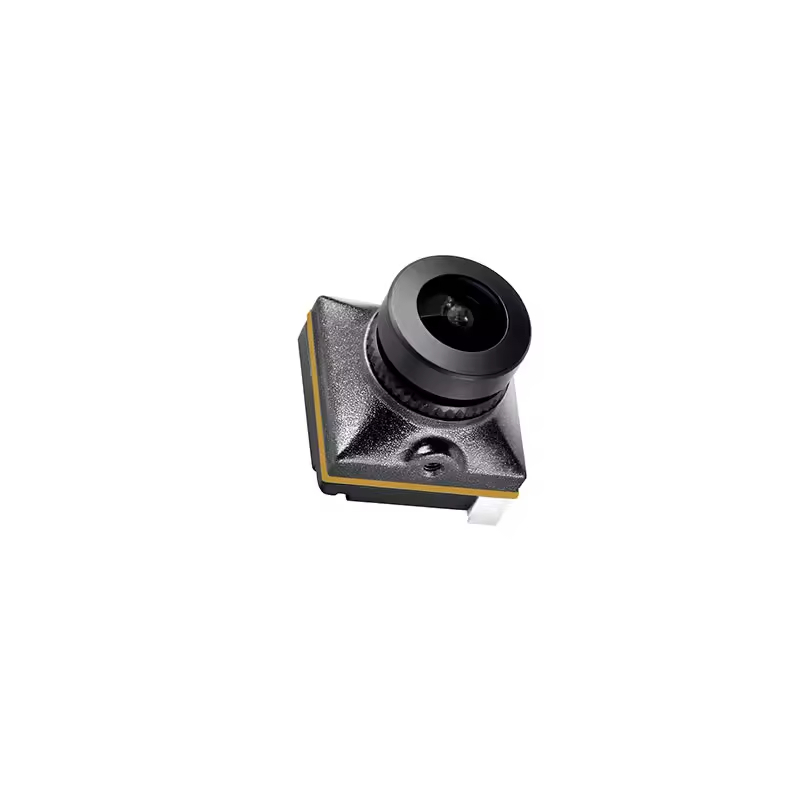

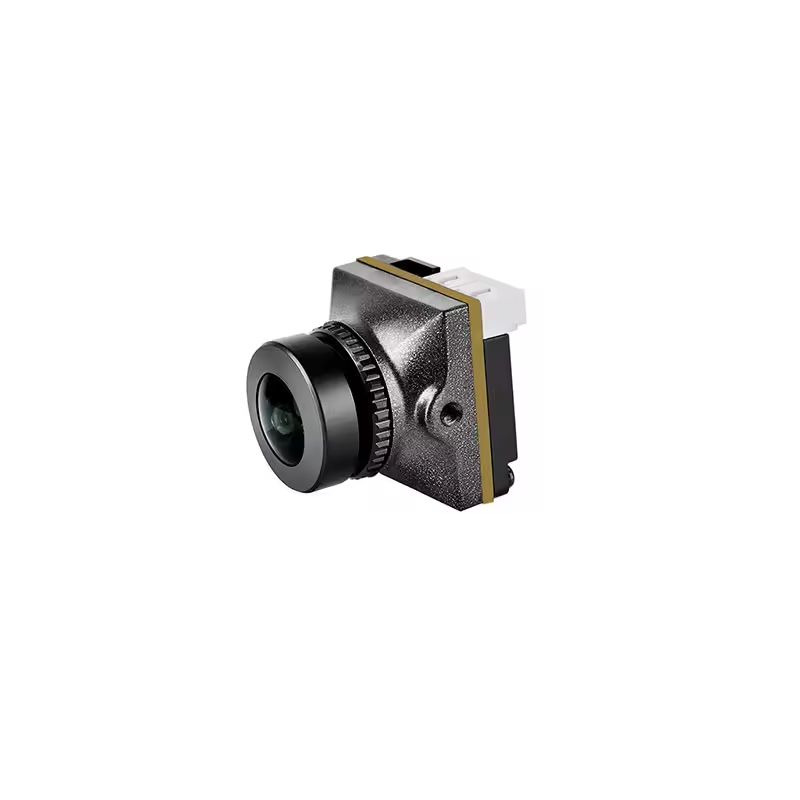

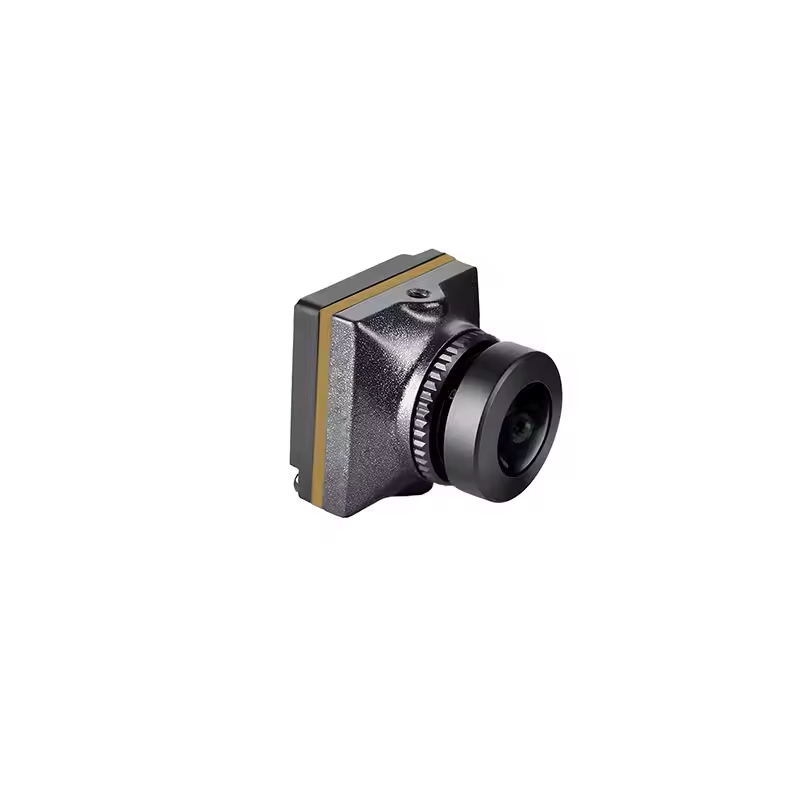

CAM02M
|
|
Image Sensor
|
1/1.8” Inch Sensor
|
|
Horizontal Resolution
|
1200TVL
|
|
Video Format
|
NTSC & PAL
|
|
Image Ratio
|
4：3 & 16：9
|
|
Wide Dynamic Range
|
Super WDR
|
|
Low Illumination
|
0.0001Lux
|
|
Lens
|
2.1mm
|
|
Electronic Shutter
|
PAL: 1/50~100,000;
NTSC: 1/60~100,000 |
|
Video Output
|
CVBS
|
|
Field of View
|
165°
|
|
Day and Night Mode
|
Auto/Color/Black and White/EXT
|
|
Dimensions
|
19*19mm
|
|
Wide Voltage Input
|
4.5-36V
|
|
Operating Temperature
|
-20℃~+60℃
|
|
Weight
|
5.9g
|
|
Packing List
|
CAM02M Camera * 1
Camera Mounting Bracket * 1 Menu Board * 1 Hex Wrench (1.5mm) * 1 3pin Silicone Cable * 1 2-pin Parameter Adjustment Cable * 1 M2 Gasket * 2 M1.4x5mm Screw * 2 M2x4mm Screw * 4 M2x5mm Screw * 2 M2x6mm Screw * 2 Warranty Card * 1 |
